parameter table
|
Parameter Name |
Specification Parameter |
|
Model |
K Series Bevel Gear - Helical Gear Hardened Reducer (Motor Compatible) |
|
Efficiency |
92%~97% (varies with transmission stages) |
|
Noise (Max) |
60~68dB |
|
Temperature Rise (Max) |
40℃ |
|
Oil Temperature Rise (Max) |
50℃ |
|
Vibration |
≤20μm |
|
Backlash |
Standard: ≤20 arcmin |
|
Main Components |
Worm wheel, worm, housing, bearings, lubrication system |

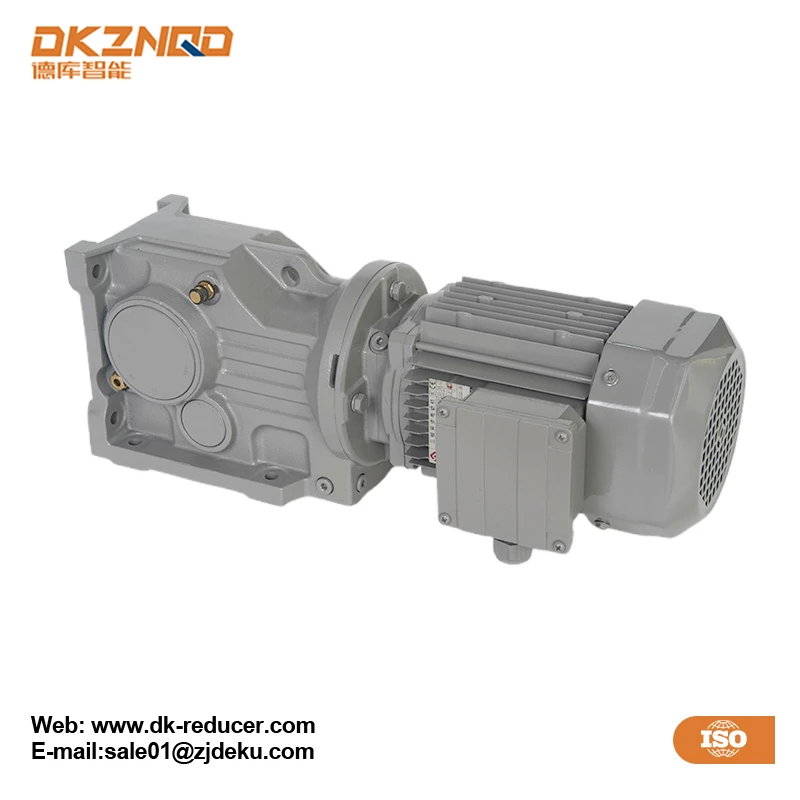

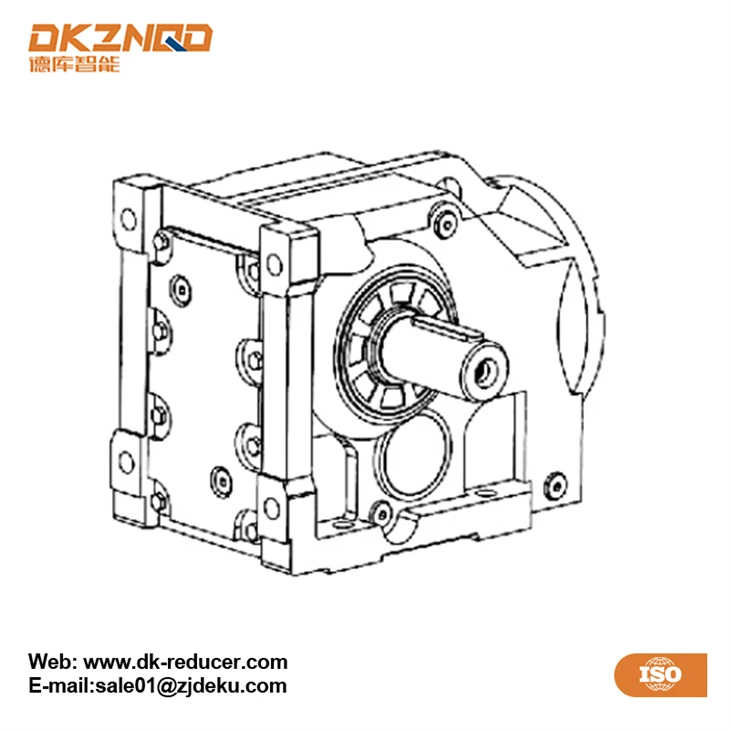

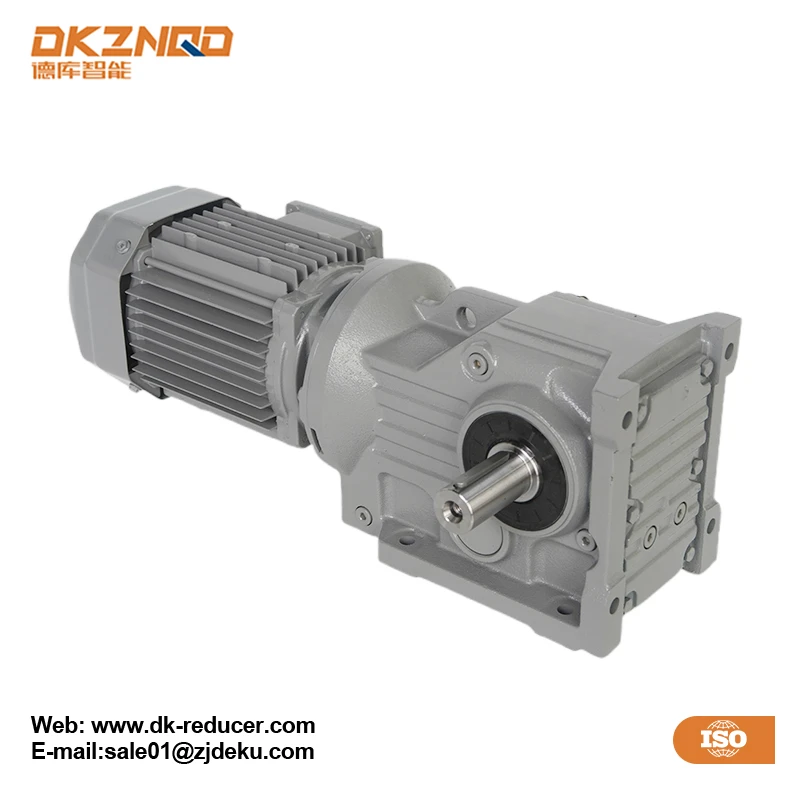

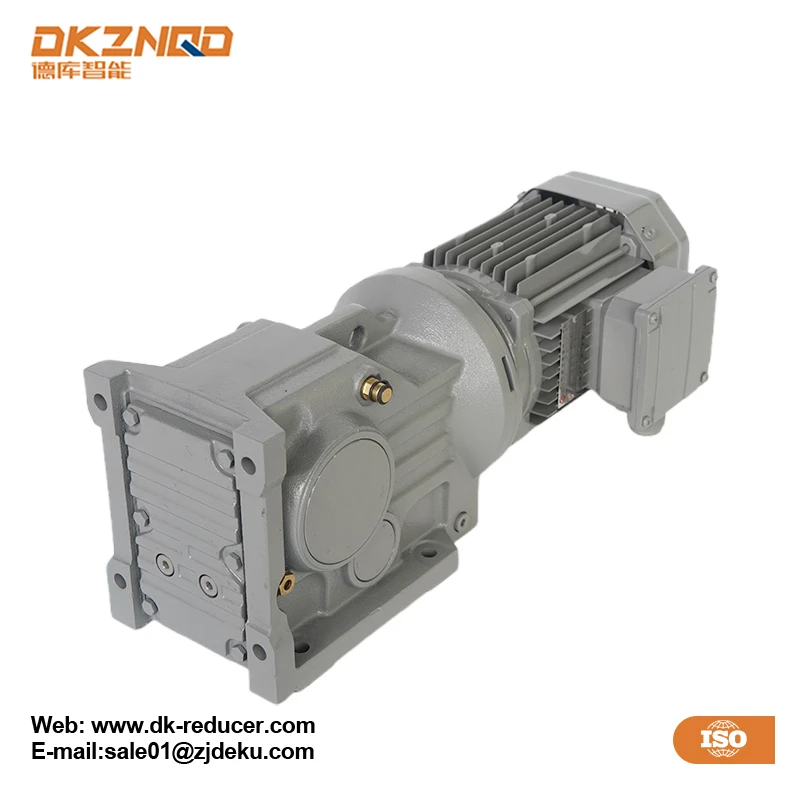

Why Choose the K167 Right Angle Helical Bevel Gearbox?
We've engineered the K167 with a modular design that doesn't just fit your machine-it optimizes it. Here is why our Right Angle Helical Bevel Gearbox outperforms the competition:
Peak Energy Efficiency (Up to 97%)
Slash your operating costs. This Right Angle Helical Bevel Gearbox uses precision-forged alloy steel gears to minimize power loss and maximize mechanical efficiency across all stages.
Pace-Saving Compact Design
Tight on space? The K167 integrates the second and third stages into a single housing. This compact Right Angle Helical Bevel Gearbox saves valuable installation room without sacrificing output power.
Whisper-Quiet & Cool Operation
Heat and noise kill productivity. With a max noise level of just 60-68dB and a controlled temperature rise (≤40°C), this Right Angle Helical Bevel Gearbox ensures a longer service life and a safer work environment.
