Parameter Table

Category	Details
Power Range	0.12 – 37 kW
Maximum Output Torque	4000 Nm
Ratio Range	6.80 – 33,818 (can be combined with RF)
Main Components	Worm wheel, worm, housing, bearings, lubrication system
Function / Features	Reduces output speed of rotating machinery and increases output torque; provides some self-locking capability
Efficiency Characteristics	Transmission efficiency decreases as the ratio increases
Noise (MAX)	≤80db
Backlash	≤20Arcmine
Brand of bearings	China top brand bearing, HRB/LYC/ZWZ/C&U.Or otherbrands requested, SKF,NSK.
Temp. rise (MAX)	40°C

product-1520-907

Gearbox type

Products Description

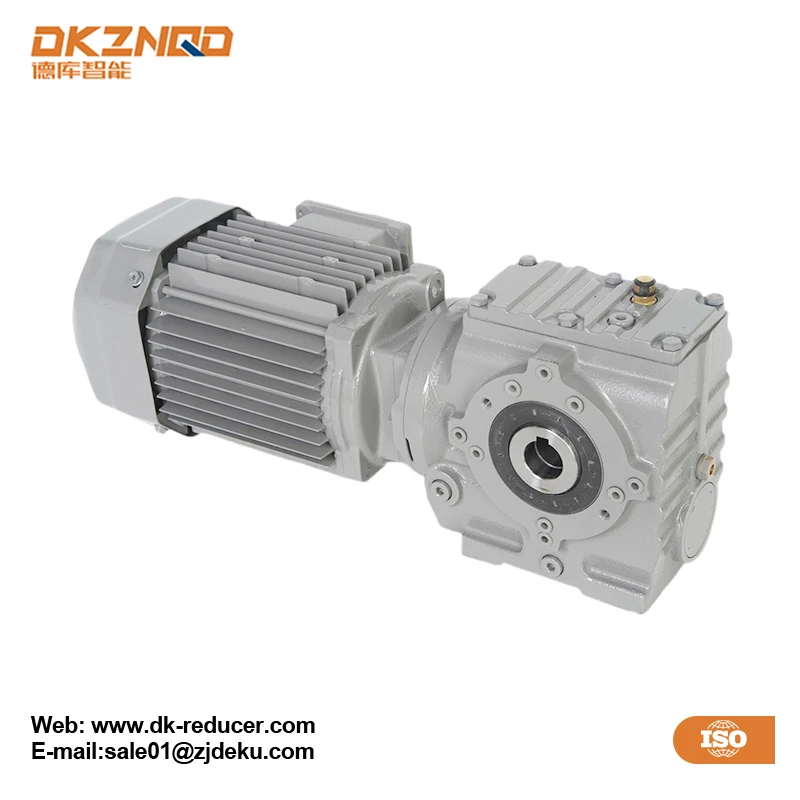

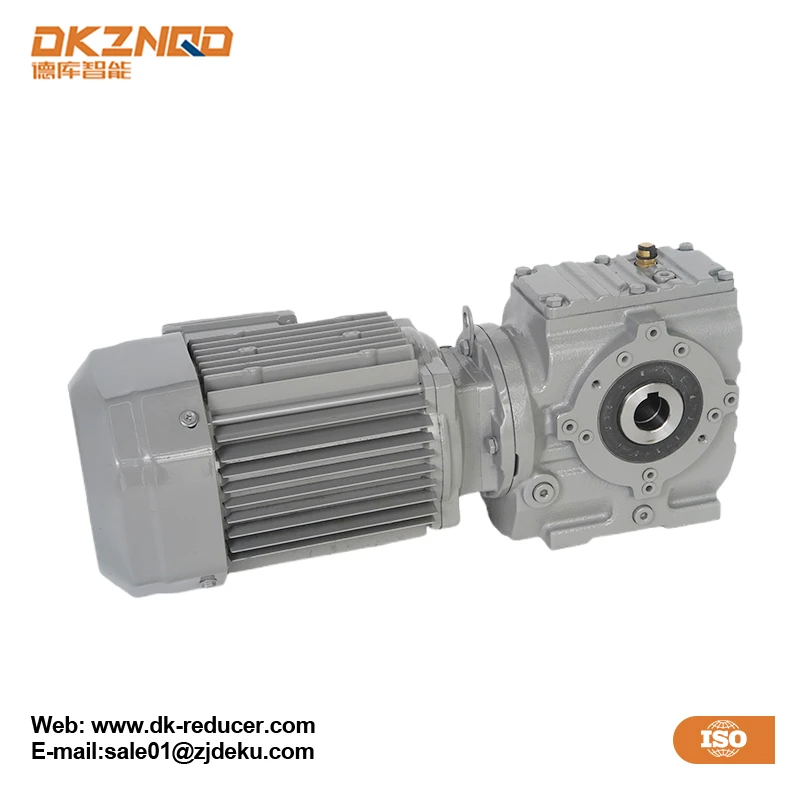

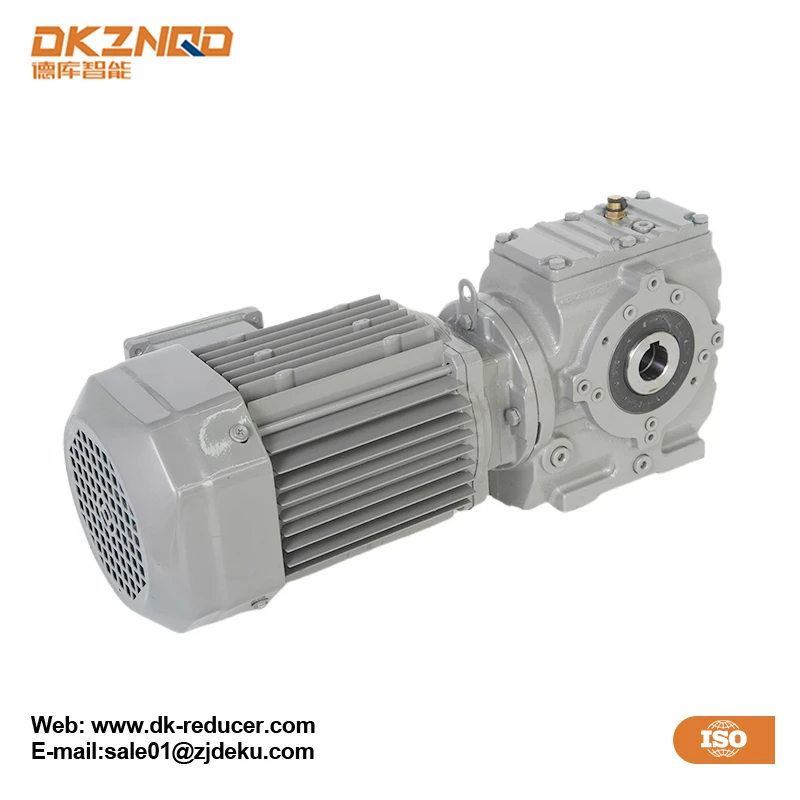

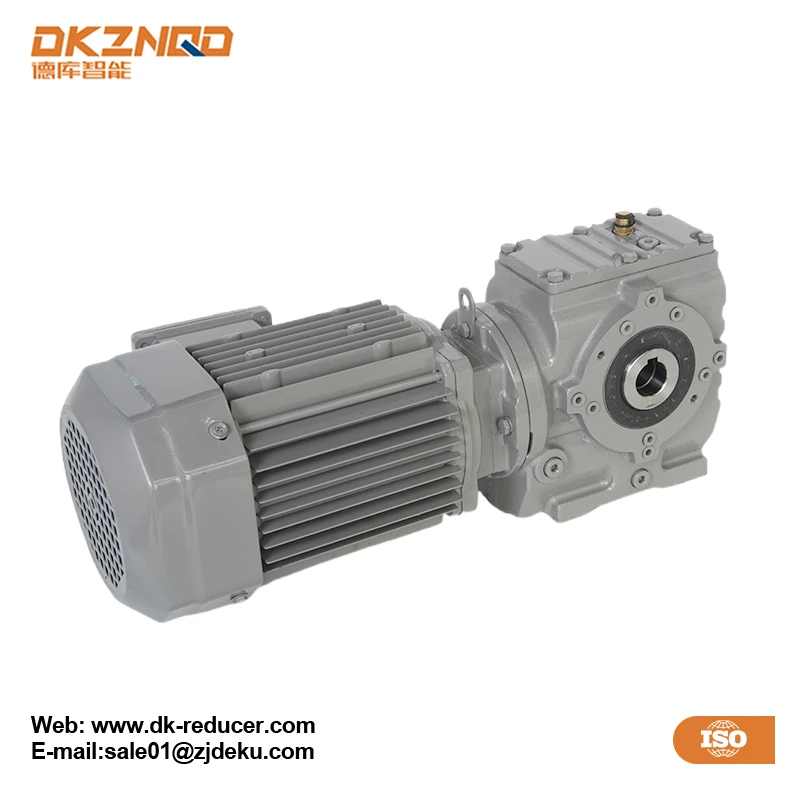

The S97 Worm Motor Gear is a high-performance, compact worm gear motor designed for precision and reliability in automation, smart machinery, and industrial control applications. It delivers strong, stable torque even at low speeds, while its space-saving, lightweight design allows easy integration into various systems. Made from premium materials with precision engineering, it ensures long-lasting durability, low noise, and minimal wear. Available in multiple speed, reduction ratio, and power configurations with customizable interfaces, the S97 Worm Motor Gear provides efficient, reliable performance, making it an ideal choice for enhancing the functionality and precision of modern mechanical systems.

Product Advantages

The S97 Worm Motor Gear boasts prominent performance and economic advantages, making it a cost-effective choice for industrial applications. In terms of performance advantages, its integrated worm and gear structure ensures precise meshing, delivering stable torque output, low operational noise and excellent self-locking performance, which effectively avoids equipment slippage and ensures safe and smooth operation even in long-term work.

Its compact structural design not only saves installation space but also enhances structural stability, reducing vibration and wear. For economic advantages, the motor is made of high-quality and cost-effective materials, with a simplified structure that lowers production and manufacturing costs. Meanwhile, its high wear resistance and long service life reduce maintenance frequency and replacement costs, and the easy-to-maintain design further cuts down operational and labor costs for users.

Reasons Why Customers Choose Our S97 Worm Motor Gear

Reliable Performance: The integrated worm and gear structure ensures precise meshing, stable torque output and low noise, guaranteeing smooth equipment operation. Its excellent self-locking performance prevents slippage, enhancing operational safety for long-term use.
Space-Saving & Stable: Compact design saves installation space, suitable for narrow equipment layouts. The integrated structure improves overall stability, reduces vibration and wear, and extends the service life of the motor and supporting equipment.
High Cost-Effectiveness: High-quality, cost-effective materials and simplified structure lower purchase costs. Strong wear resistance and long service life reduce maintenance/replacement frequency, while easy maintenance cuts operational and labor costs, bringing long-term benefits.
